Lifeboat Water Bags used for the Gangway Testing
These specailly designed wate-filled proof load bags not only used for the lifeboat testing, but also used for the gangway load testing. Based on the principles of safety, simplicity, flexibility and accuracy, our solutions help to deliver integrity assurance for our customers. Static and dynamic testing of gangway are safely and efficiently achieved using water weights.
Features and Advantages
■ High Strength PVC Coated Polyester Fibre
Brand: DOOWIN
Material weight: 1650 GSM
Tensile strength: 4500*3600N/5cm
Material thickness: 1.3mm
■ Auto pressure relief valve
It can be opened automatically when the pressure reaches the rated value.
■ High Frequency Welding, no glue used
3cm welding seam to ensure its strength
■ Anchor Tabs
There are 4/6 units of anchor tabs on both sides
■ Air Valve
There is one air valve on top to release the inside air to ensure filling water completely
Specification of Lifeboat Water Bags
| Model | Capacity | Diameter | Length | Dry Weight |
| LBT-100 | 100 KG | 440 mm | 850 mm | 6 kg |
| LBT-250 | 250 KG | 500 mm | 1600 mm | 7 kg |
| LBT-375 | 375 KG | 520 mm | 2100 mm | 9 kg |
| LBT-400 | 400 KG | 520 mm | 2250 mm | 10 kg |
| LBT-500 | 500 KG | 520 mm | 2650 mm | 12 kg |
| LBT-600 | 600 KG | 600 mm | 2500 mm | 15 kg |

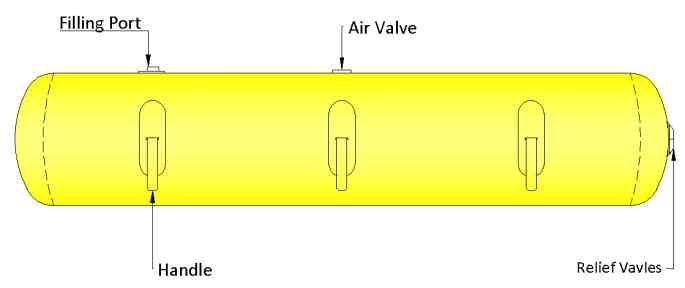

Structure of Lifeboat Water Bags
Lifeboat Water Bags System used for the gangway load testing
■ 1 x Stainless Steel Diaphragm Pump D40
■ 1 x Stainless Steel Water Meter D40
■ 1 x Brass Gate Valve D50
■ 1 x 8 Ports Manifold D50-3/4’’ with ball valves
■ 1 x Fire Hose D50 x 20m
■ 1 x Steel Wire Pipe D50 x 3m
■ 8 x Steel Wire Pipe 3/4’’ - 2x4m, 4x6m, 2x8m
■ 1 x Adapter D50/D65
